src/fritz.c File Reference

Fritz!Box Webinterface parsing code. More...

#include "../include/billigertelefonieren.h"

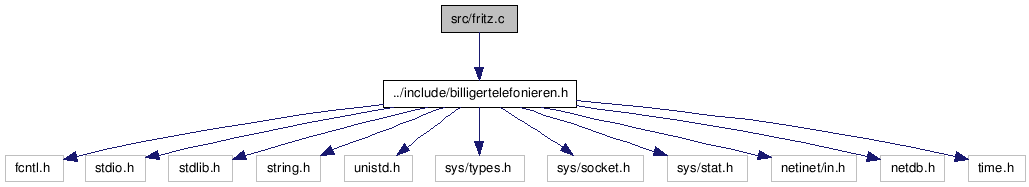

Include dependency graph for fritz.c:

Functions
size_t	calculatePrefixSettingsLength (char *providers[PR_TYPES+1], int crlf)
	calculate the length for the prefix settings
int	createPrefixSettings (char *providers[PR_TYPES+1], char *contents, int crlf)
	create prefix settings generated from the providers
int	getAndUpdatePrefixGroups (struct sockaddr_in *serveraddr, char *providers[PR_TYPES+1], int bVerbose)
	find out which prefix groups are defined and redefine them
int	loginOnBox (struct sockaddr_in *serveraddr)
	send the password to the fritz box since we want to login
int	postSettingsToWebcm (struct sockaddr_in *serveraddr, char *providers[PR_TYPES+1])
	pass providers to webcm via a HTTP POST request
int	runWebcmWithSettings (int function, char *url, char *contents, char *bigbuffer)
	pass providers to webcm via a pipe (emulates a HTTP request)

---

Detailed Description

Fritz!Box Webinterface parsing code.

contains all code related to the Fritz!Box webinterface. (c) 2005-2007 Markus Drescher last change: 28.11.07

---------------------------------------------------------------------------- This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA. ----------------------------------------------------------------------------

---

Function Documentation

size_t calculatePrefixSettingsLength	(	char *	providers[PR_TYPES+1],
		int	crlf
	)

calculate the length for the prefix settings

calculatePrefixSettingsLength

Parameters:

	providers	the providers to use at the current time
	crlf	use (cr)lf

Returns:

length needed

int createPrefixSettings	(	char *	providers[PR_TYPES+1],
		char *	contents,
		int	crlf
	)

create prefix settings generated from the providers

createPrefixSettings

Parameters:

	providers	the providers to use at the current time
	contents	result, the settings to be sent
	crlf	use (cr)lf

Returns:

FR_CP_ERR_SUCCESS, ...

int getAndUpdatePrefixGroups	(	struct sockaddr_in *	serveraddr,
		char *	providers[PR_TYPES+1],
		int	bVerbose
	)

find out which prefix groups are defined and redefine them

getAndUpdatePrefixGroups

Parameters:

	serveraddr	internet address of the fritz box
	providers	the providers for the prefix groups
	bVerbose	be verbose in this function (printf!)

Returns:

FR_GU_ERR_SUCCESS, ...

Todo:

use local pipe access to webcm

int loginOnBox

(

struct sockaddr_in *

serveraddr

)

send the password to the fritz box since we want to login

loginOnBox

Parameters:

serveraddr

internet address of the fritz box

Returns:

FR_LI_ERR_SUCCESS, ...

Todo:

use local pipe access to webcm, check if password was valid.

int postSettingsToWebcm	(	struct sockaddr_in *	serveraddr,
		char *	providers[PR_TYPES+1]
	)

pass providers to webcm via a HTTP POST request

postSettingsToWebcm

Parameters:

	serveraddr	the address of our fritz box
	providers	the providers to use at the current time

Returns:

FR_PS_ERR_SUCCESS, ...

int runWebcmWithSettings	(	int	function,
		char *	url,
		char *	contents,
		char *	bigbuffer
	)

pass providers to webcm via a pipe (emulates a HTTP request)

runWebcmWithSettings

Parameters:

	function	what should we do?
	url	url to download
	contents	contents to post
	bigbuffer	result

Returns:

0 for success, -1 for ...
